| BỘ REPEATER KHÔNG DÂY | KS-55B |
- Nhận tín hiệu từ 24 detector và phát về trung tâm.
- Khoảng cách kết nối: ≥ 800m (in open area)
- Hỗ trợ 02 ngõ vào có dây NO/NC
- Lắp đặt ngoài trời, chống thấm nước
- Nguồn cung cấp: AC220V ± 15%, DC15V/1.5A
- Dòng tĩnh: ≤ 20mA, dòng hoạt động: ≤ 50mA
Kết nối với các trung tâm: KS-258B2, KS-269C, KS-858E, KS-899, KS-899GSM
KARASSN là 1 nhà sản xuất lớn có uy tín trên thế giới về các sản phẩm thiết bị báo trộm. Sản phẩm được phân phối tại hầu hết các quốc gia lớn trên thế giới như Mỹ, Châu âu, Châu á ....
Bộ repeater không dây Karassn KS-55B là bộ thu/phát sóng tầm xa cho 24 đầu dò. Sản phẩm có chất lượng bền, tốt, kết nối với các trung tâm: KS-258B2, KS-269C, KS-858E, KS-899, KS-899GSM.
HƯỚNG DẪN CÀI ĐẶT BỘ KHUẾCH ĐẠI TÍN HIỆU KS 55B
1. Summary
 |
| HƯỚNG DẪN CÀI ĐẶT KS 55B ( TIẾNG VIỆT ) |
Two wired zones own anti-sabotage function which make it convenience to connect with the wired remitting devices and electronic fence. As the repeater, it will make the wireless remitting distance further.
2. Features
- Learn code with detectors automatically.
- Transmit 24 detectors corresponding to 24 zone of the alarm system.
- Own 2 wired zones, which can make NO/NC by the sewing resistance,
- Clew/ report/ restore to report on low battery or power.
- Be suitable for outdoor environment and waterproof.
- Tamper & anti-sabotage design.
3. Technologic Parameter
Working voltage: AC 220V + 15% DC 15 V 1.5 A
Standby power: 12V (12V 1.3Ah lead-acid batteries)
Static current: < 20mA Remit current:<50mA
Frequency: 433.92MH2 Modulation: AM
DC output: 13.8V 200mA
Wireless remit distance: >800m (in open area)
Working temperature: -20'C-+60"C
Hold temperature: -30"C-+65"C
4. Function Specification
4.1 Transmitting function
The repeater holds 30 seconds to sent the repeated signal. The repeater can send all signal of alarm/emergency/low power/lower power restore/switch from repeated detector. And use the code of
repeated detector.
4.2 Wired zones
Two wired zones make convenience for the users to access the wired devices, such as the remitter or electronic rails. The interface of NC or NO can be chosen. in Arm condition, when triggering the wired zones, the repeater can react immediately and make alarm. if the wired interface meets short circuit or open circuit, the repeater will react once per 5 minutes and make 3 times alarm at least. The way of connect wires is as Picture 1 showing.
4.3 Beep when low power or low-power restoration
a. Once the batteries voltage less than 10.5V, the repeater will beep of low power clew with "Di" sound. Then it will send wireless signal report to the alarm system. With that, the repeater will beep of low power
clew with "Di, Di, Di" sound per 30 seconds.
b. When the voltage of batteries restores to the normal, the repeater will
send the wireless signal to the alarm system after 3 seconds. The beep of low power will disappear at once.
5. Parts Specification
5.1 Main panel
a. Enroll Switch, it is for enroll the code-
b. SET key
c. Battery interface, the red wire for anode, black for cathode.
d. Tamper
e. DC input: 15V
f. Wired interface
5.2 Surface
a. Antenna: When it is installed, you can rotate the antenna into the base of antenna top, then lighten the antenna top with standard screw to make sure its waterproof and anti-sabotage.
b. Alarm indicator: it displays to be red. The specification is showed in Form 1 .
c. Hole of power cable: its top is fixed with PG9 cables. The suffer power is AC 220V50Hz. Connect with the repeater from wired outlet hole. the antenna into the base of antenna top, then lighten the antenna top with standard screw to make sure its waterproof and anti-sabotage.
b. Alarm indicator: it displays to be red. The specification is showed in Form 1 .
d. Run indicator: it displays to be green. The specification is showed in Form 1.
e. The hole for wired device: All the weak electricity wires (such as lines of wired detector, alarm output lines, etc.) are accessed with the repeater from this hole.
6.1 Enter "Set" status in the working condition, turn the Enroll Switch to the position as Picture 2. The system will beep with "Di. Du" clew sound. And the system will enter "Set" status once the green indicator lights on.
6.2. Exit "Set" status in the "set" condition, turn the End roll switch to the position as picture 3.
The system will beep with "Du, Di " clew sound . And the system will exit "Set" status once all indicators will be off.
Note: in the "Set" condition. if there is no any operation in 60s, the system will beep with rapid clew of "Di, Di".Di".."'.sound. it has alert the users to exit the 'Set" status.
when the transmitted detectors are learned, the second and third code can be setup at will.
Trigger the transmitted detector to remit until the flashing red indicator turn to the lighting red indicator and make "Di" clew sound. The repeated detector is successfully learned. After enroll, exit "Set" status and trigger the repeated detector to alarm to recheck. Please make sure the transmitted detectors being learned.
Note: When enroll codes, press "Set". if the indicator doesn't flash but the repeater makes 'mi, dou, sou" voice, it means the position of Enroll Switch has been coded. Just repress "Set" to enroll compulsively or enroll in other position by turning the Enroll Switch to another position.
Trigger the expected repeated detector. if the repeater make four times of "Di" clew, it means the transmitter has exited the same codes.

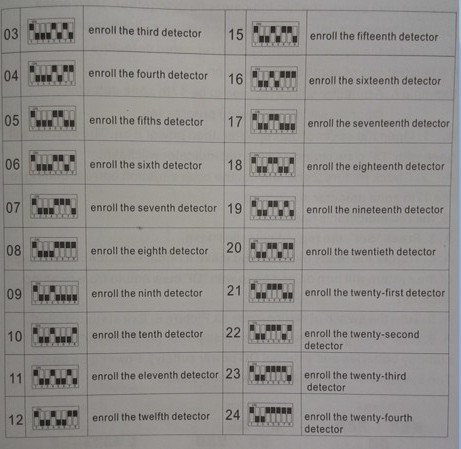

form 2 : the address code of the repeater
in the "Set" status, you can turn dip switch to the address position of the deleting repeated detector. Then press "Set" two times continually, the red indicator will flash. with that, long press "set" until the red indicator turns on from flashing. Release your hand when hear "Di". That is the success deleting of repeated detector zone.
6.5 Delete all repeated detectors
in the "Set" status, you can turn the dip switch to the position as picture 4. The red and green indicators will be on, with that, press "Set" and release it until seeing the two indicators flash together. Then press "Set" and release it until seeing the two indicators light on and hearing "Di". That is the success deleting of all repeated detectors.
6.6 illustrations of enroll code operation
Example A: A detector will be learned to be 17th zone detector Operate with the following progresses:
A. 1. Open the cover of the repeater, then power it on. The system will beep with 'Di" clew sound and the red indicator will flash.
A. 2. Check Picture 2 and find out the code situation corresponding to the 17th zone detector. As picture 5, the red indicator is flashing.
A. 3. Press "Set", the red indicator will flash.
A. 4. Trigger the ready detector and make it remit. Here the red indicator of the system will turn on and beep with "Di" clew sound from flashing situation.
A. 5. Turn the switch of dialing-code as Picture 6. Exit status of "Set".
A. 6. After exiting, you should turn off all power (including AC 200V, standby batteries and external DC power supply). Power it on again.
The system will return to normal working status.
Note: When the cover of repeater was open in the status of powering on, the repeater will remit wireless signal to alarm system at once. Then it will make alarm indication in spot, which means it doesn't allow the repeater entering "Set" status. What you can do is turn off power and power it on again after making alarm indication in spot. And dial the code to enter "Set" status
Claim
1 . Because this product is wireless emission device, please get the wireless power Office allowance in local before you use the power launch file.
2. Please test the system temperature lo make sure its normal working condition. Any questions may have, please contact with our company.
l{ you don't agree with the above items, return the product to our company in 3 days from your purchasing in the condition of non-destroying. Or else, we suppose your agreement.
HƯỚNG DẪN SỬ DỤNG KS-55B
1.Giới thiệu:
Trung tâm KS-55B là bộ đẩy sóng cho 24 thiết bị cảm biến không dây về trung tâm báo trộm.
Khoảng cách giữa KS-55B và thiết bị không dây tốt nhất là 10-15m trở lại.
Khi nhận sóng thiết bị không dây KS-55B sẽ tự động đẩy sóng về trung tâm báo trộm khoảng cách tốt nhất là 100-120m trở lại.
2. Reset KS-55B:
Gạt 123478 lên ON ( 56 vẫn để dưới)
Ấn nút SET màu đen ( giữ khoảng 2s) trên trung tâm KS-55B rồi thả ra.
Tiếp tục ấn lại 1 lần nữa ( giữ trong 5s) chờ nghe tiếng “Bip” đèn sáng lên rồi thả tay ra.
3. Cài đặt:
Sau khi Reset trung tâm xong ta tiến hành cài đặtthiết bị như sau:
Cài cho Zone 1: ta gạt nút số 1 và 5 lên ON sau đó bấm nút SET và kích hoạt thiết bị không dây khi nghe tiếng “ Bip Bip” thì trung tâm KS-55B đã nhận thiết bị.
Tương tự cho các zone còn lại ta cũng cài như vậy mã của từng zone như sau:
Zone 2: 1+5+8 Zone 13: 1+4+6
Zone 3: 1+5+7 Zone 14: 1+4+6+8
Zone 4: 1+5+7+8 Zone 15: 1+4+6+7
Zone 5: 1+5+6 Zone 16: 1+4+6+7+8
Zone 6: 1+5+6+8 Zone 17: 1+4+5
Zone 7: 1+5+6+7 Zone 18: 1+4+5+8
Zone 8: 1+5+6+7+8 Zone 19: 1+4+5+7
Zone 9: 1+4 Zone 20: 1+4+5+7+8
Zone 10: 1+4+8 Zone 21: 1+4+5+6
Zone 11: 1+4+7 Zone 22: 1+4+5+6+8
Zone 12: 1+4+7+8 Zone 23: 1+4+5+6+7 Zone 24: 1+4+5+6+7+8
4. Xóa thiết bị: Tại các Zone mà bạn muốn xóa ta gạt vị trí vào Zone đó ấn nút SET giữ trong 5s
